Air flow system

Our Raised Floor Products and accessories will benefit control the airflow of the air-conditioning system while easily managing all under-floor cables and wires.

RAISED ACCESS FLOOR - AIR FLOW SYSTEM


Our Raised Floor Products and accessories will benefit control the airflow of air-conditioning system while easily managing all under floor cables and wires.


Advantages

  • High dimensional precision, anti-static performance
  • Strong load ability and shock-proof
  • High recycled, convenient removing. Good exchange-ability
  • Applicable for various covering tiles, HPL, PVC, wood floor...

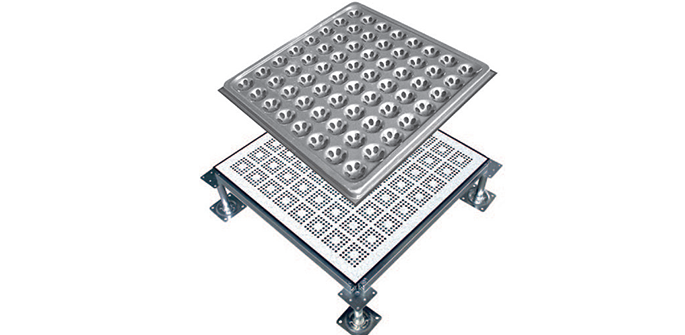

16% Air Flow

  • 16% ventilation rate with Interior
  • Strengthening Rib
  • HPL/PVC Finish
  • Hole size: 18*51mm
  • Hole No.: 2048 (32*64)
  • Panel size: 600*600*35mm
  • Concentrated load: 350Kg, 500Kg Optional

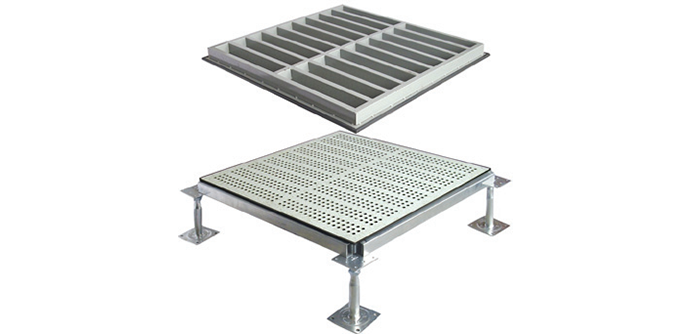

20% Air Flow

  • 20% ventilation rate
  • HPL/PVC Finish
  • Hole size: 10mm
  • Hole No.: 918 (51*18)
  • Hole No.: 2048 (32*64)
  • Panel size: 600*600*30/32/35/40mm
  • Concentrated load: 350Kg, 500, 700Kg Optional

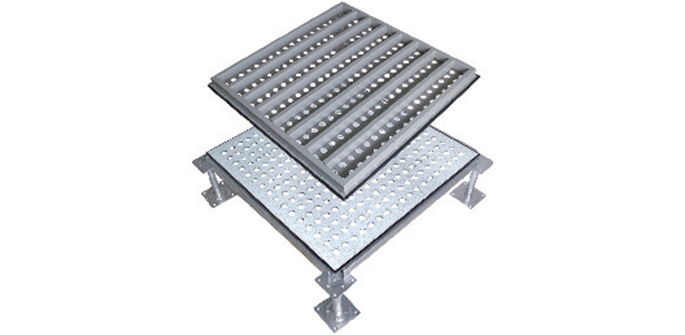

23% Air Flow

  • 23% ventilation rate
  • HPL/PVC Finish
  • Hole size: 20mm
  • Hole No.: 256 (16*16)
  • Panel size: 600*600*30/32/35/40mm
  • Concentrated load: 350Kg, 500, 700Kg Optional

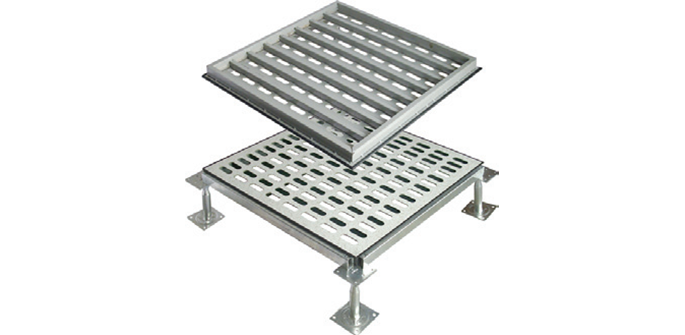

32% Air Flow

  • 32% ventilation rate
  • HPL/PVC Finish
  • Hole size: 18*51mm
  • Hole No.: 128 (16*8)
  • Panel size: 600*600*30/32/35/40mm
  • Concentrated load: 350Kg, 500Kg Optional

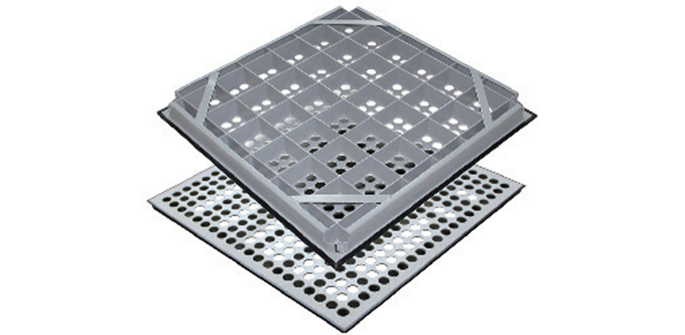

45% Air Flow

  • 45% ventilation rate
  • HPL/PVC Finish
  • Hole size: 22mm
  • Hole No.: 400 (20*20)
  • Panel size: 600*600*35mm
  • Concentrated load: 400Kg

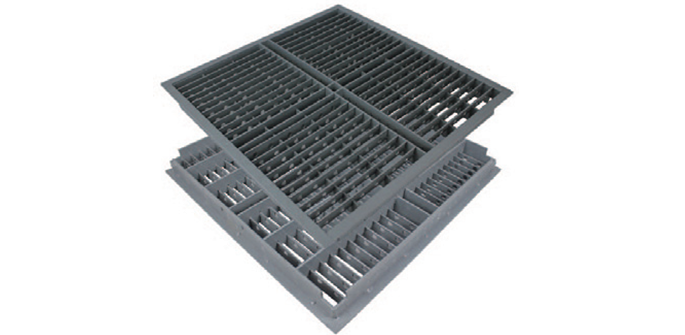

65% Air flow

  • 65% ventilation rate
  • Epoxy Coating
  • Panel size: 600*600*35mm
  • Concentrated load: 500Kg

Damper Panel

  • HPL/PVC Finish
  • Size: 600*600*35mm
  • Concentrated load: As per panel loading ability

Contact us for more information on Raised Access Floors Air Flow System or to discuss your requirements. Enquiries are solicited from UK, UAE, Qatar and South Africa on following Email id info@altairtechuk.com
