We appreciate each customer and we are proud that 60% of clients come back to work with us again.
Ladders are manufactured from sheet steel and are epoxy coated or hot dip galvanised after manufacture to reduce the risk of corrosion.
Bend
Tee
Cross
Inside Riser
Bend
Bend
Bend
Cross

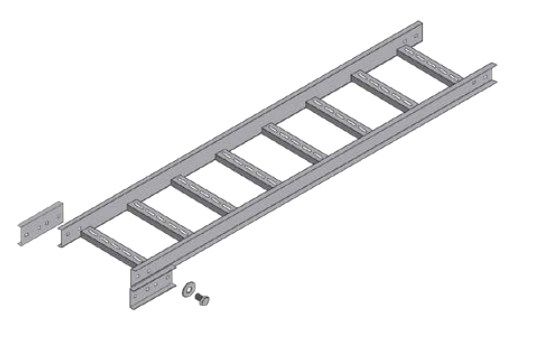

Ladders like cable trays are load bearing components meant for industrial and large cable support applications. The load bearing capability of a ladder is significantly higher than that of a cable tray of a comparable size. Altair ladders are manufactured from sheet steel and the rungs are either welded or bolted onto the side rails. Either scheme is acceptable from a performance perspective; however the bolted schemes can be relatively stronger as the area of contact between the rungs and the side rails is higher. The dimensions of the side rails and rungs determine the number of cables that can be run and the relative strengths of the system.
Ladders are manufactured from sheet steel and are epoxy coated or hot dip galvanised after manufacture to reduce the risk of corrosion. In certain applications, the ladders are deep galvanised to reduce corrosion risk to the minimum. Fittings c/w Hexagon Head Bolt M8, Nut and Washer
| Materials | Finishes Available |
|---|---|
| Pre—galvanised to BS EN1O14221993 | Original Finish |
| Hot Rolled Sheet Steel to BS EN 1o111:1998 | Hot Dip Galvanised to BS 729:1971 |
| Electro Galvanised Steel to BS EN 1o152:1994 | Epoxy Coated 90B/ |
| Hot Rolled Sheet Steel to BS EN 1o111:1998 | Hot Dip Galvanised to BS 729:1971 and epoxy coated |
| Stainless Steel Grade AISI 304, 316 or 316L | Original Finish 055 |
| Width (mm) | Gauge (mm) | Trays | Flat Bend 90 degree | Flat Equal Tee | Cross | Inside Riser 90 |
|---|---|---|---|---|---|---|
| 150 | ACL/150 | ACL/90B/150 | ACL/1ET/50 | ACL/X/150 | ACL/90IR/150 | ACL/90OR/150 |
| 300 | ACL/300 | ACL/90B/300 | ACL/1ET/300 | ACL/X/300 | ACL/90IR/300 | ACL/90OR/300 |
| 450 | ACL/450 | ACL/90B/450 | ACL/1ET/450 | ACL/X/450 | ACL/90IR/450 | ACL/90OR/450 |
| 600 | ACL/600 | ACL/90B/600 | ACL/1ET/600 | ACL/X/600 | ACL/90IR/600 | ACL/90OR/600 |
| 750 | ACL/750 | ACL/90B/750 | ACL/1ET/750 | ACL/X/750 | ACL/90IR/750 | ACL/90OR/750 |
| 900 | ACL/900 | ACL/90B/900 | ACL/1ET/900 | ACL/X/900 | ACL/90IR/900 | ACL/90OR/900 |
| 1000 | ACL/1000 | ACL/190B/000 | ACL/11ET/000 | ACL/X/1000 | ACL/90IR/1000 | ACL/90OR/1000 |
Note : Thickness of cable ladders is 2mm and height is 100mm
