Compartment / Parapet Trunking & Accessories

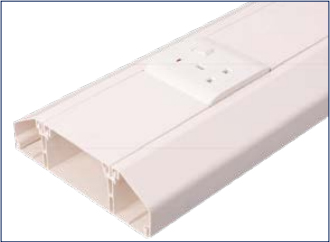

COMPARTMENT / PARAPET TRUNKING

PERFOMANCE

  • Deformation resistance: Per meter length is applied per square of cross section of 0.13g load. 2 hours after the maximum deformation, the height direction 10%, the width direction 10%.
  • Impact properties : -5˚C Low temperature, 2 hours,1.0 kg(medium) hammer, height 100 ± 1mm, the corresponding impact energy, the sample no visible cracks.
  • Heat resistance: 60 ± 20 ˚c under the condition of 5mm diameter ball 20N applied force, the pressure on the specimen surface, surface indentation diameter 2mm.
  • Insulatio: 50HZ,2500V,AC 60 seconds without breakdown, the insulation resistance of not less than 100 megohms.

Mainly used Ming assembly line project,for cable, telephone line, cable, network lines, etc. Play a protective role. Particularly suitable for Building, Schools, Hospitals, Shopping Mall, Hotels, Factories and indoor wiring and wiring renovation project.

Advantage: 86- type switch socket panel can be mounted directly on the holder without deep gang box.

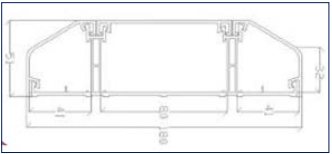

PARAMETER

Item No
Size
External Size Internal Size
W H H1 W1 W2 W3
"THICKNESS (MM)" "PACKING Pcs/bag"
AP3CT180
180 50 32 41 80 41
2.2 2

ACCESSORIES

AP3CT180ET
Equal Tee

AP3CT180FB
Flat Bend

AP3CT180SB33 | AP3CT180SB36
Switch Box

AP3CT180CC
Connecting Cover

AP3CT180CC
End Cap

AP3CT180IR
Inside Riser

AP3CT180OR
Outside Riser
