Steel Cement Systems: SC Series

Altair manufactures steel cement raised access floor panels, also known as cementitious floor panels, for all types of applications. The range of use includes general office spaces, computer and control rooms, as well as industrial applications.

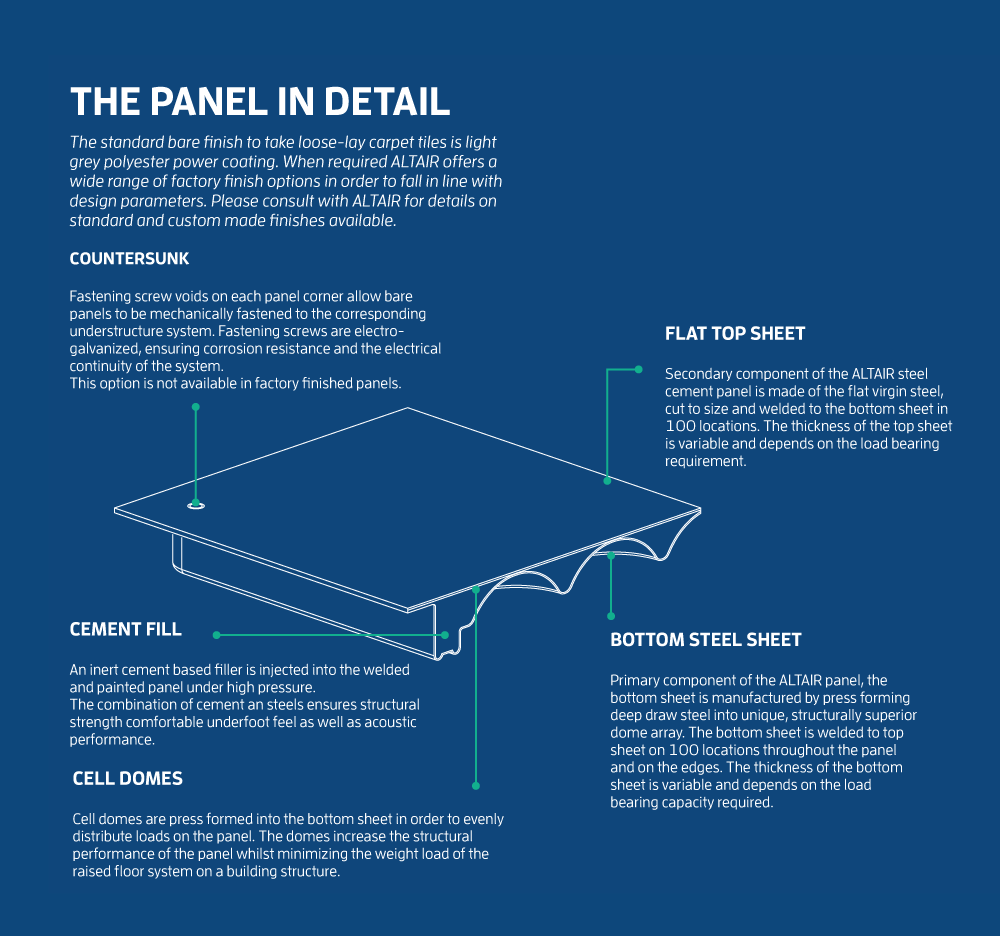

The main characteristics of these panels are structural strength, resistance to fire and humidity, and solid and quiet underfoot feel. Panels are manufactured by welding together a press formed deep-draw bottom sheet and a flat top sheet.

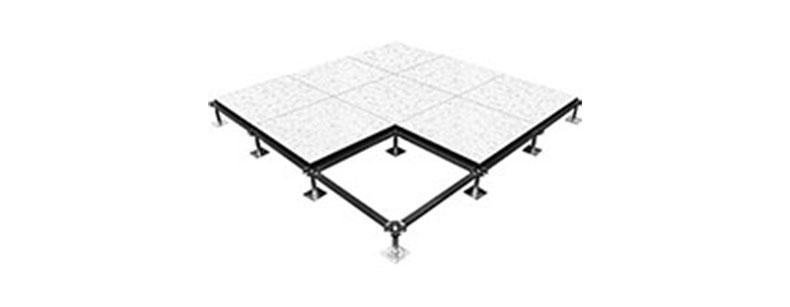

The panel is then trimmed, phosphate washed, and polyester powder coated. It is subsequently injected with a cement fill and allowed to cure for 72 hours. Panels can be installed on either Cross-Head or Stringer Grid understructure systems to achieve finished floor heights ranging from 70mm to 1800mm.

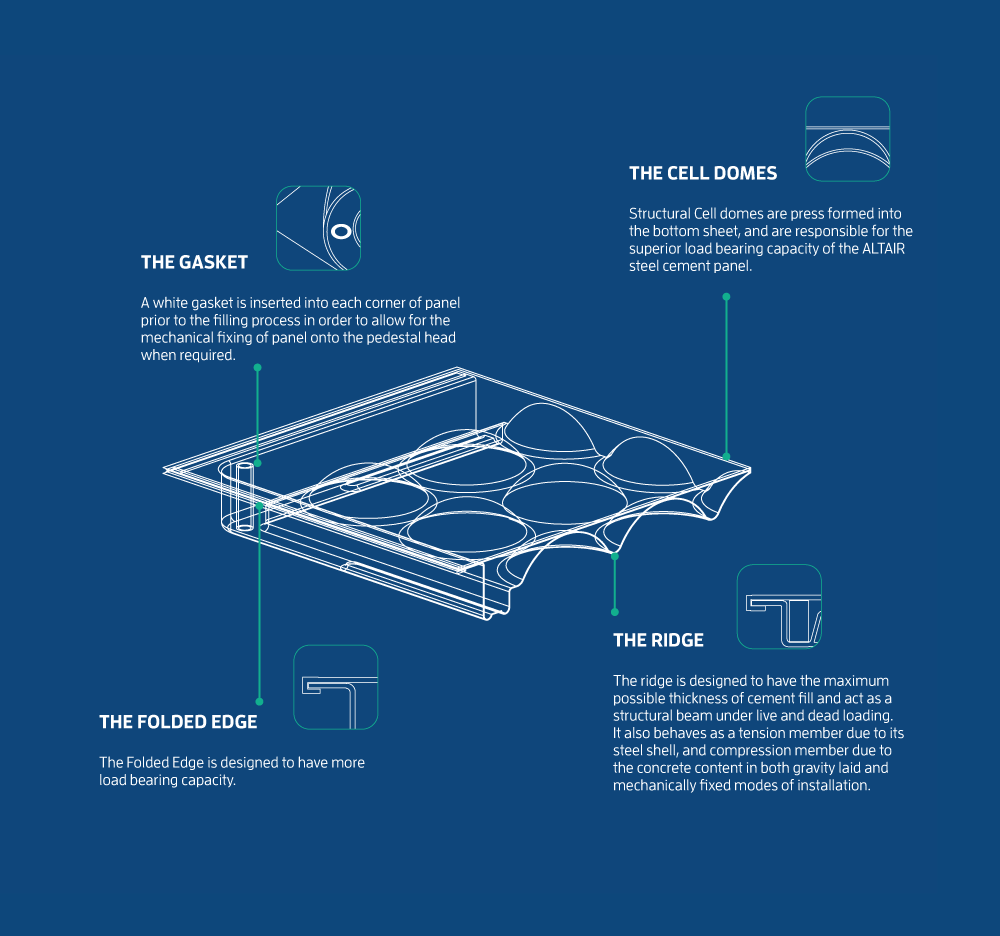

Resistance welds between the top sheet and the bottom sheet as well as the edges in one hundred locations ensures the monolithic structural performance of each ALTAIR steel cement panel.

The combination of the welds, the inert filler, and the steel sheets result in fire and humidity resistance superior to most other types of raised access floor panels.


Type 1 - Steel Cement Panel Corner Lock System

Steel Cement Panel with finishes Technical Data


Static Load Performance TEST UNIT AL800 AL1000 AL1250
Concentrated load CISCA kN ≥3.56 ≥4.45 ≥5.56
Uniform load CISCA kN/m² ≥16.10 ≥23.00 ≥33.00
Ultimate load CISCA kN ≥10.68 ≥13.35 ≥16.68
Dynamic Load Performance TEST UNIT AL800 AL1000 AL1250
Rolling load 10 times CISCA kN 3.56 4.45 5.56
Rolling load 100000 times CISCA kN 2.67 3.56 4.45
Impact load CISCA N ≥363 ≥453 ≥567
Physics Properties TEST UNIT AL800 AL1000 AL1250
Panel Size - mm 600x600 600x600 600x600
Panel Thickness EN 12825 kN 34 34 34
Panel Weight - kg 13.0 14.5 15.5
Top sheet EN 12825 mm 0.6-0.8 0.6-0.8 0.6-0.8
Bottom sheet EN 12825 mm 0.7-0.9 0.8-1.1 0.8-1.1
Resistance to Elements TEST UNIT AL800 AL1000 AL1250
Fire Performance ASTM E84 CLASS A A A

*manufacturer reserves the right to modify specifcation without prior instruction.

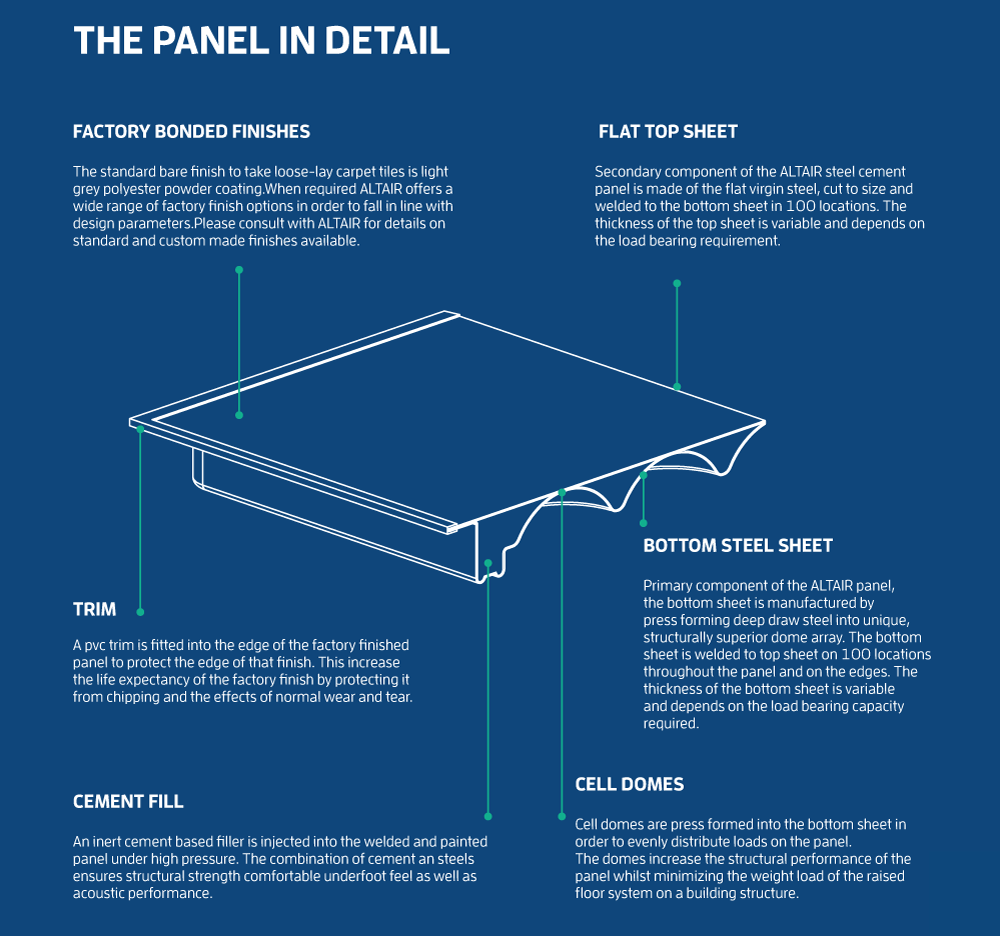

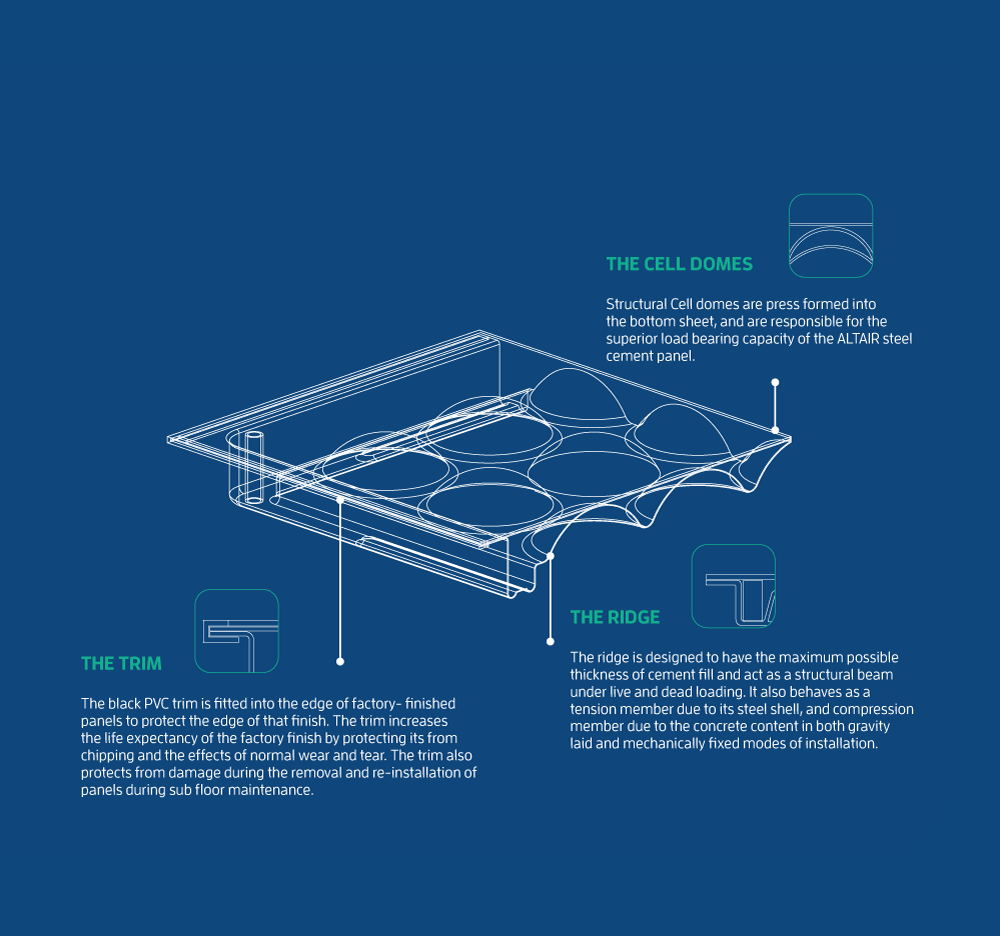

Type 2 - Steel Cement Panel with finishes

Finish: HPL, Vinyl, Linoleum, Ceramic, Stone

Steel Cement Panel with finishes Technical Data

Static Load Performance TEST UNIT AL800 AL1000 AL1250
Concentrated load CISCA kN ≥3.56 ≥4.45 ≥5.56
Uniform load CISCA kN/m² ≥16.10 ≥23.00 ≥33.00
Ultimate load CISCA kN ≥10.68 ≥13.35 ≥16.68
Dynamic Load Performance TEST UNIT AL800 AL1000 AL1250
Rolling load 10 times CISCA kN 3.56 4.45 5.56
Rolling load 100000 times CISCA kN 2.67 3.56 4.45
Impact load CISCA N ≥536 ≥670 ≥780
Physics Properties TEST UNIT AL800 AL1000 AL1250
Panel Size - mm 600x600 600x600 600x600
Panel Thickness EN 12825 mm 35.0 35.0 35.0
Panel Weight - kg 13.0 14.5 15.5
Top sheet EN 12825 mm 0.6-0.8 0.6-0.8 0.6-0.8
Bottom sheet EN 12825 mm 0.7-0.9 0.8-1.1 0.8-1.1
Paint thickness - microns 60 60 60
Resistance to Elements TEST UNIT AL800 AL1000 AL1250
Fire Performance ASTM E84 CLASS A A A

*manufacturer reserves the right to modify specifcation without prior instruction.

Type 3 - Wood core panel


A - Wood Core Raised Access Floor (Finished Type)

HPL, PVC, Ceramic, Granite, Marble.

Characteristic

The main characteristic of woodcore raised access floor panel manufactured by ALTAIR is light weight compared to its structural strength, which makes it practical for easy installation and access to the sub–floor.

Application

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room etc, and occasions demanding antistatic and air conditioning.

Structure

28/38mm high quality chipboard core with galvanized steel reinforcement with four sides PVC edge trim sealed HPL, PVC, Steel covering. Die casting steel structure pedestal, plastic gasket on top, height could be 70-1500mm, with or without stringer.

Wood Core Panel Technical Data (Finish Type)


Static Load Performance TEST UNIT AL800 AL1000
Concentrated load CISCA kN ≥3.35 ≥4.55
Uniform load CISCA kN/m² ≥16.1 ≥23.0
Ultimate load CISCA kN ≥11.25 ≥13.35
Dynamic Load Performance TEST UNIT AL800 AL1000
Rolling load 10 times CISCA kN 3.56 2.67
Rolling load 100000 times CISCA kN 4.45 3.56
Impact load CISCA N ≥536 ≥670
Physics Properties TEST UNIT AL800 AL1000
Panel Size - mm 600x600 600x600
Panel Thickness - mm 34/40 34/40
Resistance to Elements TEST UNIT AL800 AL1000
Fire Performance BS 476 CLASS B1 B1

*manufacturer reserves the right to modify specifcation without prior instruction.

B - Steel Encased Wood Core Raised Access Floor


Characteristic

  • Fully galvanized steel encasing chipboard, tight sealing and waterproof.
  • High dimensional precision, high loading capacity and shockproof.
  • Adjustable height for pedestal, assembly agility, large wire and good exchangeability.
  • Elegant appearance for various top tiles.
  • Recyclable, convenient removing, cost saving, long performance life.

Application

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room etc, and occasions demanding antistatic and air conditioning.

Structure

28/38mm high quality chipboard core with galvanized steel reinforcement with four sides PVC edge trim sealed HPL, PVC, Steel covering. Die casting steel structure pedestal, plastic gasket on top, height could be 70-1500mm, with or without stringer.


Wood Core Panel Technical Data (Finish Type)


Static Load Performance TEST UNIT AL800 AL1000 AL1250
Concentrated load CISCA kN ≥3.35 ≥4.55 ≥5.56
Uniform load CISCA kN/m² ≥16.1 ≥23.0 ≥33.0
Ultimate load CISCA kN ≥11.25 ≥13.35 ≥16.68
Dynamic Load Performance TEST UNIT AL800 AL1000 AL1250
Rolling load 10 times CISCA kN 3.56 4.45 5.56
Rolling load 100000 times CISCA kN 2.67 3.56 4.45
Impact load CISCA N ≥536 ≥670 ≥780
Physics Properties TEST UNIT AL800 AL1000 AL1250
Panel Size - mm 600x600 600x600 600x600
Panel Thickness - mm 25/30 25/30 25/30
Resistance to Elements TEST UNIT AL800 AL1000 AL1250
Fire Performance BS 476 CLASS B B B

*manufacturer reserves the right to modify specifcation without prior instruction.
