Under Floor Systems

UNDER FLOOR SYSTEMS

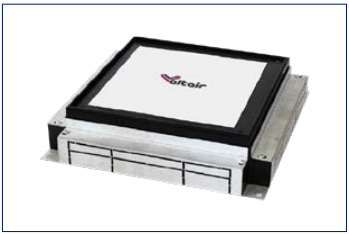

Inscreed Service Junction Box

Standard Height of the junction box is 65-75mm Boxes also available in the height of 75-90mm & 90-105

Product Code Length x Width
AAUJ/ 250/1 250 X 125
AAUJ/ 250/2 250 X 250
AAUJ/ 250/3 250 X 250
AAUJ/ 300/2 300 X 300
AAUJ/ 300/3 300 X 300

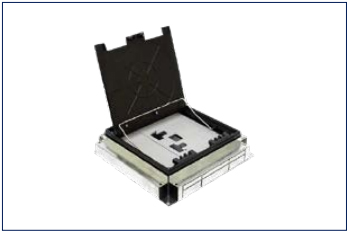

Inscreed Service Outlet Box

Standard Height of the junction box is 65-75mm Boxes also available in the height of 75-90mm & 90-105

Product Code Length x Width
AAUJ/ 250/1 250 X 125
AAUJ/ 250/2 250 X 250
AAUJ/ 250/3 250 X 250
AAUJ/ 300/2 300 X 300
AAUJ/ 300/3 300 X 300

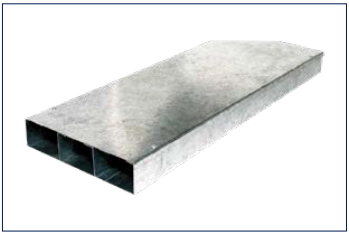

Flush Floor Trunking

Ordering Information [PG] Pre galvanized [HDG] Hot dip galvanized [EC] Epoxy coated available on request [SS] Stainless steel [ALU] Aluminum [SP] Special order on customer request Standard thickness 1.20mm to 2.00mm Standard length 2.44 mtr Example: For hot dip galvanized HDG straight length 3 compartment 65mm high and 300mm wide Product code: AA-FFT300= 65x300/3x1.2HDG

Product Code Single Compartment Two Compartment Three Compartment Width X Height [mm]
AA-FFT150 FFT 150/1 150X65
AA-FFT300 FFT 300/2 FFT 300/3 300 X 65
AA-FFT400 FFT 400/2 FFT 400/3 400 X 65

Flush Floor Junction Box

Product Code LxWx H
AAFJ/ 150/1 150 X 150X 65
AAFJ/ 300/2 300 X 300 X 65
AAFJ/ 300/3 300 X 300 X 65
AAFJ/ 400/2 400 X 400 X 65
AAFJ/ 400/3 400 X 400 X 65

Flush Floor Service Box

Product Code LxW
AAFS/ 250/1 250 X 125
AAFS/ 250/2 250 X 250
AAFS/ 250/3 250 X 250
AAFS/ 300/2 300 X 300
AAFS/ 300/3 300 X 300
