Cable Trays

In a building environment, cables need to be run from the main distribution board to sub main boards. In order to ensure safe transportation and distribution of cables it is essential to use an appropriate cable support system.

Cable Trays ensure that this support function is adequately performed. The trays are supported at regular intervals enabling appropriate loading in accordance with requirements of standards.

The choice of products and nish depends on atmospheric conditions and the capability of the support system to withstand adverse conditions.

Altair cable trays offer a high degree of exibility, both from a perspective of locating the component parts to accessing the cable supports. The cable trays are available in various nishes including pre-galvanised, galvanised after manufacture and epoxy coated finishes and various grades of stainless steel. Altair cable trays and ladders comply to the requirements of the BS EN6153722001.

The usage of accessories will ensure that the client is delivered a proper solution, complete with component parts. This will also reduce the need to cut on-site and, risks associated with the onset of resultant corrosion. If the need arises to cut product onsite, it is recommended to apply a layer of cold galvanizing paint on the cut surface /edges after the rough edges have been filed off.

In humid / salt laden conditions, it is recommended to use products that have been galvanised after manufacture. This will reduce the chances of product failure in such conditions. In extremely corrosive surroundings, stainless steel containment is recommended, as this has the capability to withstand such conditions. For non exposed corrosive areas such as sewage treatment plans, the usage of non metallic containment is recommended.

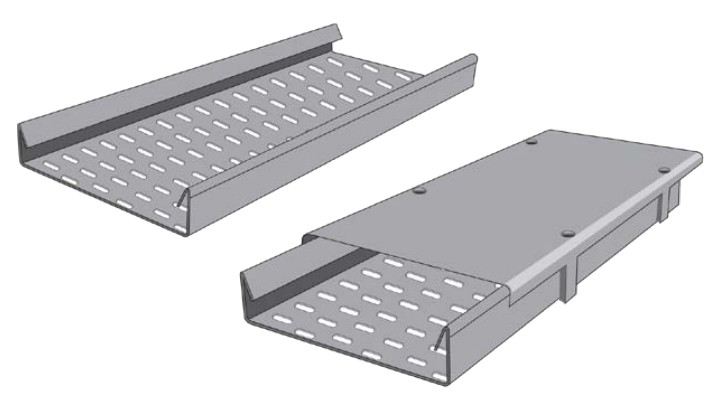

Light Duty Cable Trays:

Length: 3 Meters
Flange Height
For widths ranging from 50mm to 100mm: 15mm
For widths ranging from 150mm to 600mm: 25mm

Heavy Duty Cable Trays:

Length: 3 Meters
Flange Height
For all widths: 50mm
Return range: 12mm (25mm available on request)

Heavy Duty

Light Duty

Note: Different thickness and sizes can be made available on request

Please note : AlTair reserves the right to change perforation patterns and product specifications without prior notice
